NOTE: This product has been discontinued and is for educational purposes only! If you would like to build your own, please see the documentation on Github.

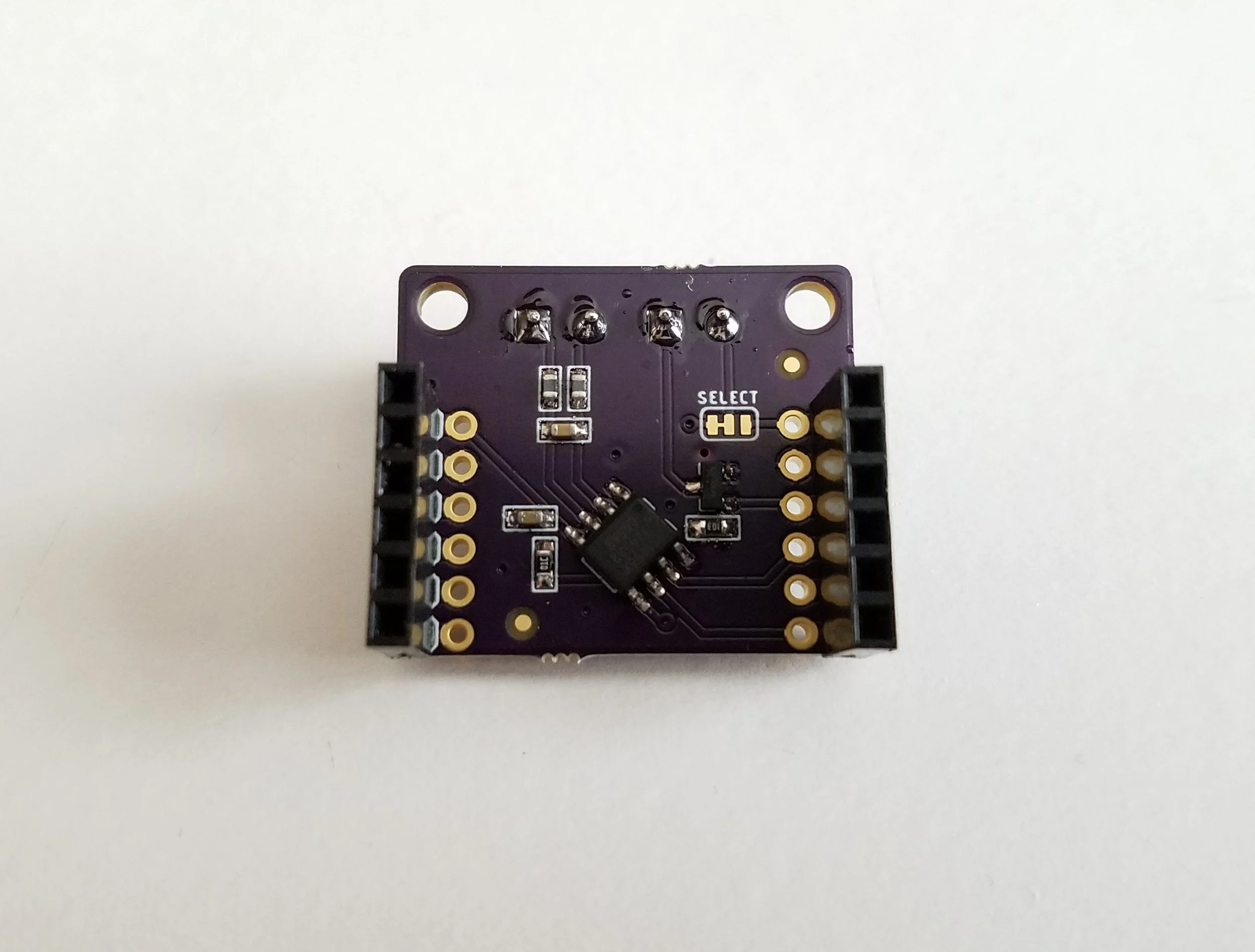

The Reflowduino32 is an add-on module that plugs into a "DOIT" ESP32 development board to give it thermocouple and relay control interface via convenient screw terminals. This is especially useful in applications involving high-temperature monitoring and relay control, like in reflow oven applications. When used in conjunction with the Sidekick relay module it can easily be used to control almost any high-power AC appliance (such as a toaster oven) by following the provided documentation.

Items Included

• Reflowduino32 backpack module (fully-assembled)

• K-type thermocouple with glass-braid insulation, 1 meter long

Note: The ESP32 development board is NOT included in this order.

Resources

• Full documentation, sample code, demo app, design files, etc. on Github

• Step-by-step Github wiki

• ESP32 reflow oven tutorial
